UL Listed 3 Position Rotary Switch 19mm 12V-24V DC/AC, Latching Selection Switch 5Amp 2NO 2NC 8Pin On Off On 3/4" Mounting Hole Blue LED
Product details
| Management number | 247481898 | Release Date | 2026/08/16 | List Price | US$6.80 | Model Number | 247481898 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Rotary switch 3 position through UL and CE Certification. High quality metal material (Stainless Steel 304 )& IK10/IP40 protection. Item Name:3 position selection switch, Contact Type: 2NO 2NC DPDT 8Pin, Selector Positon: 90°3 Position.

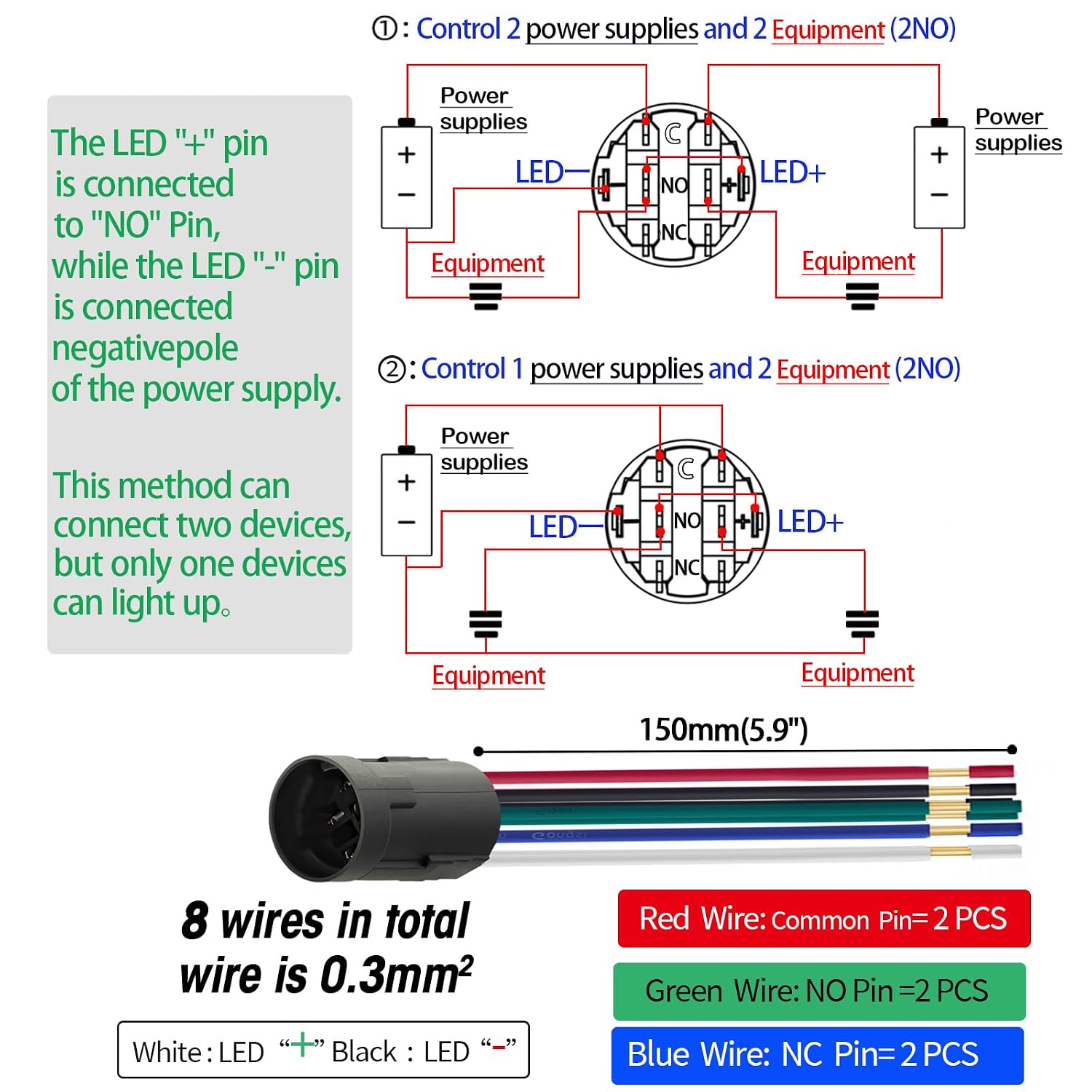

- ★★Function ①: The 3 position rotary switch can control only device 1 to the left, turn it off in the middle, and control only device 2 to the right. ★★Function ②: Left or right controls 2 devices at the same time, the middle is off.
- Rotary switch with light: 12V~24V blue LED light (AC/DC).Mounting Hole Dia:19mm /0.75inch (3/4"). Thread length 17.7mm/0.7inch, total length 40.8mm/1.61inch.Easy to install,with the wire connector.
- Maximum Voltage :250V AC Rated Current:5Amp ,Mechanical Life: 300,000 Cycles. Electrical Life:100,000 Cycles. Action Type:Latching, left open, middle close, right open.(On-Off-ON)
- Package Content Include:1Pcs 3 position rotary switch with blue light, 1* Wire Connector Sockets.
| UPC | 761312233479 |
|---|---|
| ASIN | B09MYXKVC3 |
| Color | Blue |
| Model | J19-572BD |
| Wattage | 60 watts |
| Terminal | Button |
| Brand Name | ZJWZJH |
| Unit Count | 1 Count |
| Item Weight | 18.14 g |
| Part Number | J19-471/572 |
| Switch Type | Rotary |
| Circuit Type | 2-way |
| Contact Type | Dpdt, 2 Normally Closed +2 Normally Open |
| Manufacturer | ZJWZJH |
| Actuator Type | Rotary |
| Material Type | Stainless Steel |
| Mounting Type | Panel Mount |
| Connector Type | Plug In |
| Control Method | Touch |
| Current Rating | 5 A |
| Operation Mode | ON-OFF-ON |
| Controller Type | Mechanical knob |
| Item Dimensions | 1.87 x 0.87 x 1.87 inches |
| Number of Items | 1 |
| Contact Material | Silver |
| Operating Voltage | 12 volts_of_direct_current |
| Specification Met | CCC, CE, UL |
| Included Components | 1Pcs 3 Position Selector Switch, 1Pcs Wire Connector Sockets |
| Number of Positions | 3 |
| Warranty Description | If you have any question, please be free to contact us. |
| Connectivity Protocol | X-10 |
| Insulation Resistance | 1E+8 |
| Upper Temperature Rating | 70 °C |
| International Protection Rating | IP54 |
