4pcs Temperature Controller -50 to 110 Celsius (-58 to 230 F) DC 12V Programmable Heating/Cooling Thermostat Control Switch Module NTC Waterproof Sensor Probe Dual Color LED Display Monitor

Product Description:Product Name: Programmable Dual LED Display Temperature ControllerOperating Voltage: DC12V 200mAMeasurement Range: -50 to 110 Celsius (-58 to 230 F)Elaboration Precision: +/-0.1 CelsiusControl Precision: 0.1 CelsiusBacklash Precision: 0.1 CelsiusRefresh Rate: 0.5sHigh Temperature Protection: 0 to 60 Celsius (32 to 230 F)Temperature Sensor Type: 10K 0.5% NTCOperating Temperature: -10 to 60 Celsius (14 to 140 F)Compatible Load: 5A / 15A 220VAC; 20A 14VDCPower Consumption: Less than and equal to 35mA (Static), Less than and equal to 65mA (relay closure)Module Size: 48x29x32mm / 1.89x1.14x1.26 inch (LxWxH)Temperature Setting:Press STC key and the LED will flash. Press STC (+) and C/F (-) key to reach the set temperature value, wait for 3s, and the module will automatically save the parameters and exit.Indicator:Lights on, relay closed; Lights out, relay disconnected.LED Display:Red: Measuring Temperature; Blue: Setting TemperatureLL: Means the sensor is openHH: Indicates that the temperature exceeds the measurement range of the module--: Indicates that the module is under high temperature protectionProgrammable Thermostat Introductions (Code, Explain, Setting range, Factory setting):P0, Heating/Cooling, H/C, CP1, Return difference, 0.1-30, 2P2, Set limit maximum, +110, 110P3, Set limit minimun, -50, -50P4, Temperature correction, -15 - +15, 0P5, Delay start, 0-10, 0P6, High temperature alarm, -50 - +110, OFFP7, Celsius/Fahrenheit, CS/FH, CSP8, Factory reset, ON-OFF, OFFPackage Content:4 * Temperature monitoring controller

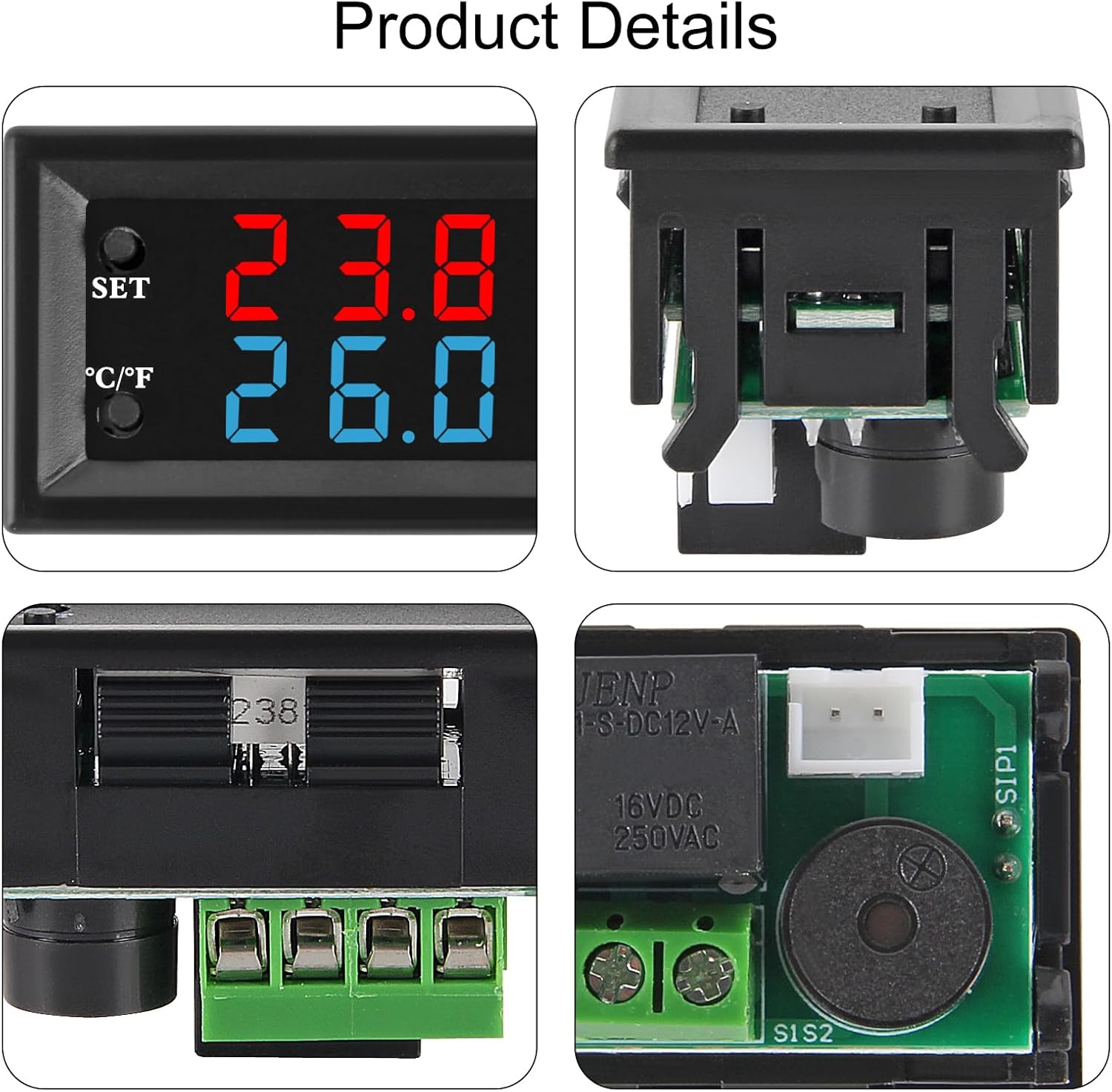

• Dual color LED display: this digital thermostat control module of dual color LED display, which show the measured temperature (red) and set temperature (blue) at the same time, which can be applied for cooling/ heating mode, you can test indoor or outdoor temperature
• Operating Voltage: DC12V 200mA
• Measurement Range: -50 to 110 Celsius (-58 to 230 F), the C/F button allows you to switch between Celsius and Fahrenheit temperatures
• Waterproof design: the NTC (10K 0.5%) probe is waterproof, and you can control the temperature at will, can also control heating or cooling according to different needs
• Can be used for fish tank water temperature control, incubation field, equipment cabinet, air conditioning system, temperature control protection, control cabinet cooling system and other DIY temperature control systems.
